HDPE 20×20 Screen Mesh

Durable HDPE 20×20 screen mesh 80% airflow. Heat-treated for shrink and deformation resistance, ideal for insect screens in agricultural, residential, and commercial use.

SKU PE-20200 Categories ,

Description

HDPE 20×20 Screen Mesh – Durable Insect Mesh

HDPE 20×20 Screen Mesh is made from high-density polyethylene (HDPE) enhanced with specialized UV inhibitors, providing excellent weather resistance and high-temperature durability. The plain woven black 20-mesh screen features a uniform mesh size and superior stability, ensuring minimal shrinkage and deformation after heat treatment.

With over 80% open area, it offers optimal ventilation while effectively preventing mosquitoes and other insects. The mesh yarns are highly elastic and strong, resisting slipping and tearing, which facilitates easy installation and clean cutting without fraying or distortion.

Certified by the Taiwan Textile Research Institute (TTRI) under CNS12720-K6970 standards, this product withstands shrinkage and deformation at temperatures above 92°C, guaranteeing long-term reliable performance in agricultural, residential, and commercial applications.

Key Features:

  • Material: 100% HDPE with UV stabilizers
  • Open Area: Over 80% for excellent airflow and ventilation
  • Durability: Heat-treated for resistance to shrinkage, deformation, and UV damage
  • Applications: Insect screens for windows and doors, agricultural netting, pest control

Additional information

Material

HDPE MONO YARN

Length

100ft (30m) / per roll

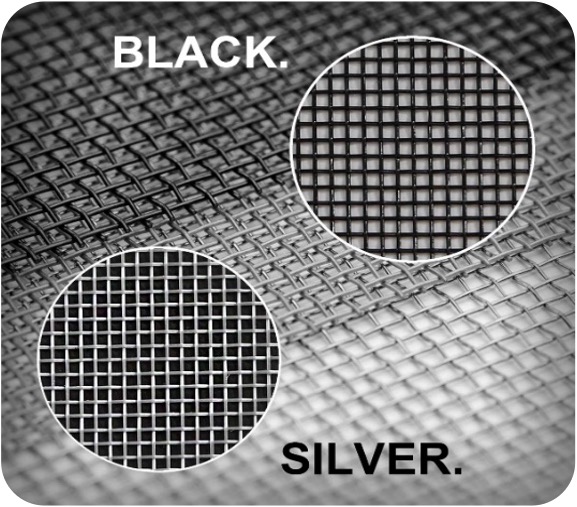

Color

Silver (04), Black (08)

Yarn Dia.

0.26 mm ± 0.01 mm

Width

0.6m, 0.75m, 0.9m, 1.05m, 1.2m

Mesh Size

1mm x 1mm ± 0.05mm

SQM

102g ± 3g

THICKNESS.

0.52 mm ± 0.02 mm
